The VBT system measures vibration-damping properties of elastic or viscoelastic materials. It is based on a free vibrating beam theory. This method can be used to measure properties of materials used for structural vibration damping and noise control. It is valid for a frequency range of 10 to 5000 Hz. All Mecanum VBT system are delivered with a verification steel beam as well a beam starter kit that includes glue, steel uniform beams, aluminum uniform beams and mounting screw. ​

Photo  (25).JPG

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX


Measured propreties

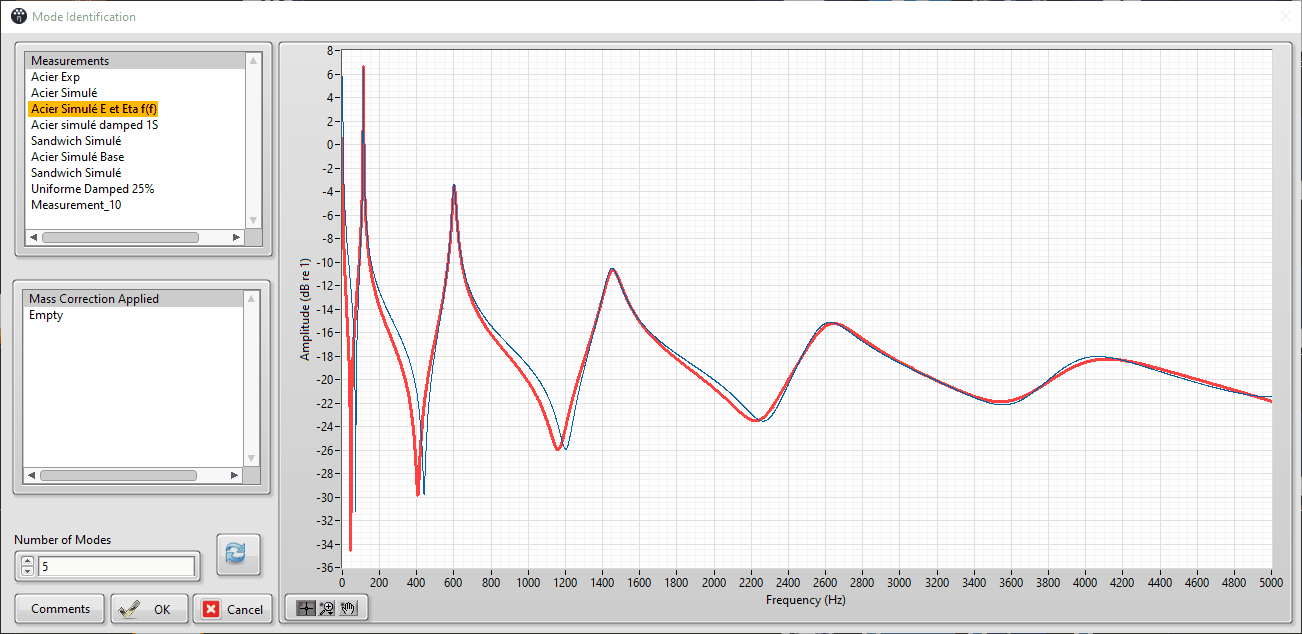

VBT-X software converts the signals and calculates the transfer function of the response signal over the excitation signal. The resonance modes are then used to evaluate the properties of the material

  1. Young’s modulus (E) or shear modulus (G)


  2. Damping loss factor (ƞ)


  3. One side bonded beam analysis​


  4. Sandwish beam analysis​


  5. Uniform beam analysis​


Additional features


  • Averaging module

  • In addition of allowing the user to average several measurements and display the standard deviation.

  • Automatic calculation of the global statistics

  • Choose between different bounding methods

Applications



VBT-X software converts the signals and calculates the transfer function of the response signal over the excitation signal. The resonance modes are then used to evaluate the properties of the material
